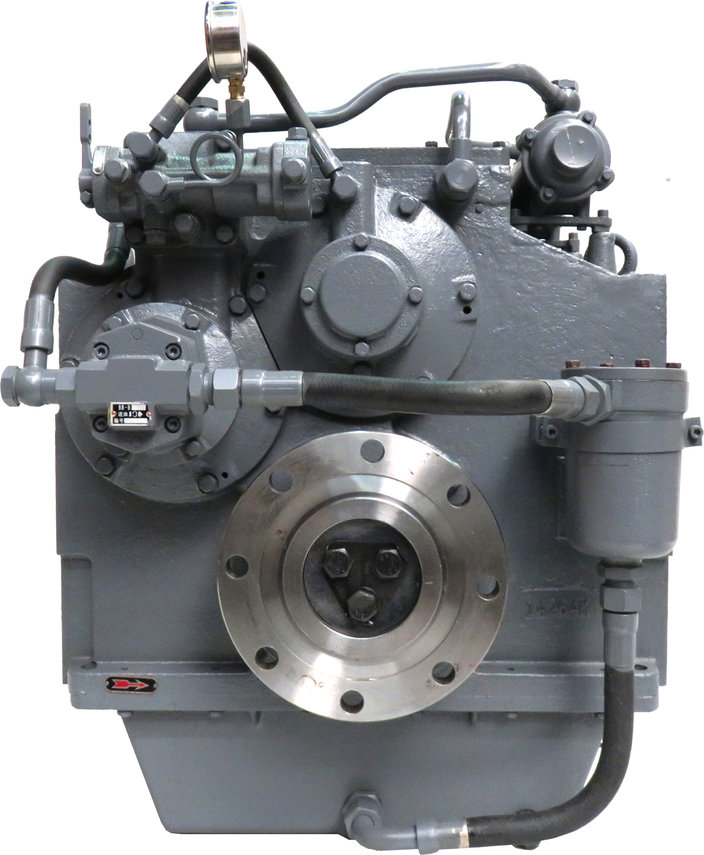

ADVANCE MB270A - 4,05:1
Medium/heavy duty gearbox
| Reference number | A-MB270A-4,05 |
| Brand | Advance |
| Model | MB270A |
| Ratio | 4,05:1 |
| Power | 360 HP @ 1800 RPM |
| Max. Power | 500 HP @ 2500 RPM |
| RPM Range | 1000-2500 |
| Status | For sale |
| Rated propeller thrust | 39,2 KN |
| N/n | 0,20 HP/RPM |
Features & options
| Sae housing | Without/SAE-0/SAE-1 |
| Controls | Mechanical/ Electrical |
| Pto | Available |
| Note | If using flexible couping, rate will rise 8% |
| Coupling size | 18 /16 /14 inch |
| Coupling type | Rubber block drive, with alu. ring/(High) flexible coupling |
Dimensions
| Vertical offset | 270 mm |
| LxWxH | 594x810x868 mm |
| Net. weight | 675 kg |
