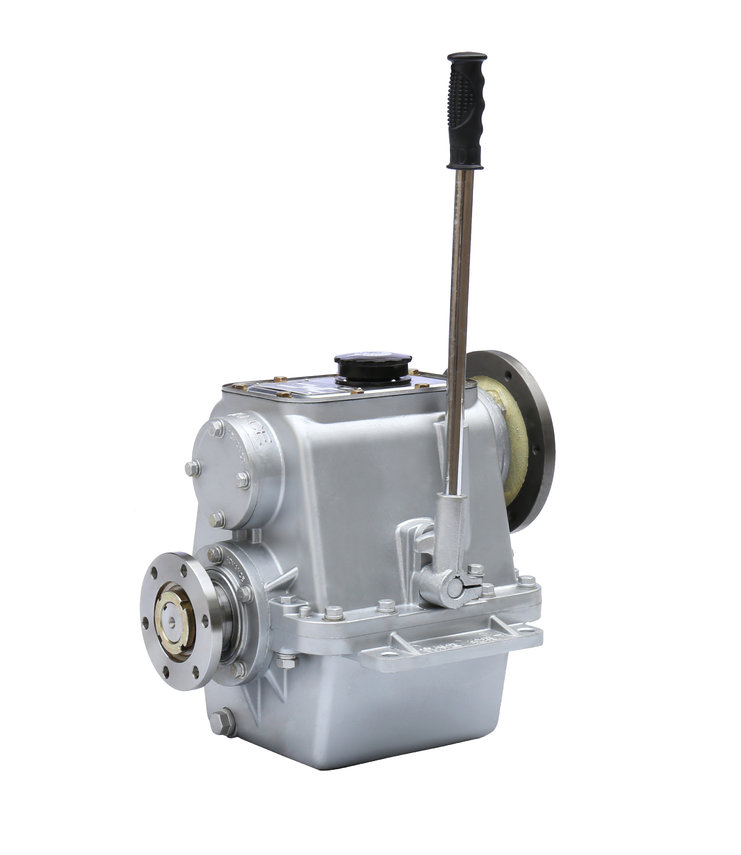

ADVANCE 06 - 3,5:1
Medium/heavy duty gearbox
| Reference number | A-06-3,5 |
| Brand | Advance |
| Model | 06 |
| Ratio | 3,5:1 |
| Power | 10,8 HP @ 1800 RPM |
| Max. Power | 12,6 HP @ 2100 RPM |
| RPM Range | 1000-2100 |
| Rated propeller thrust | 1,8 KN |
| N/n | 0,006 HP/RPM |
Features & options
| Sae housing | Without |
| Controls | Mechanical-joint clutch |
| Pto | Not available |
| Coupling size | 11,5 inch |
| Coupling type | Rubber wheel coupling |
Dimensions
| Vertical offset | 124 mm |
| LxWxH | 350x316x482 mm |
| Net. weight | 58 kg |
Available arrangements
| Ratio | 3,05:1 | 3,5:1 |
| Rate | 0,006 HP/RPM |
