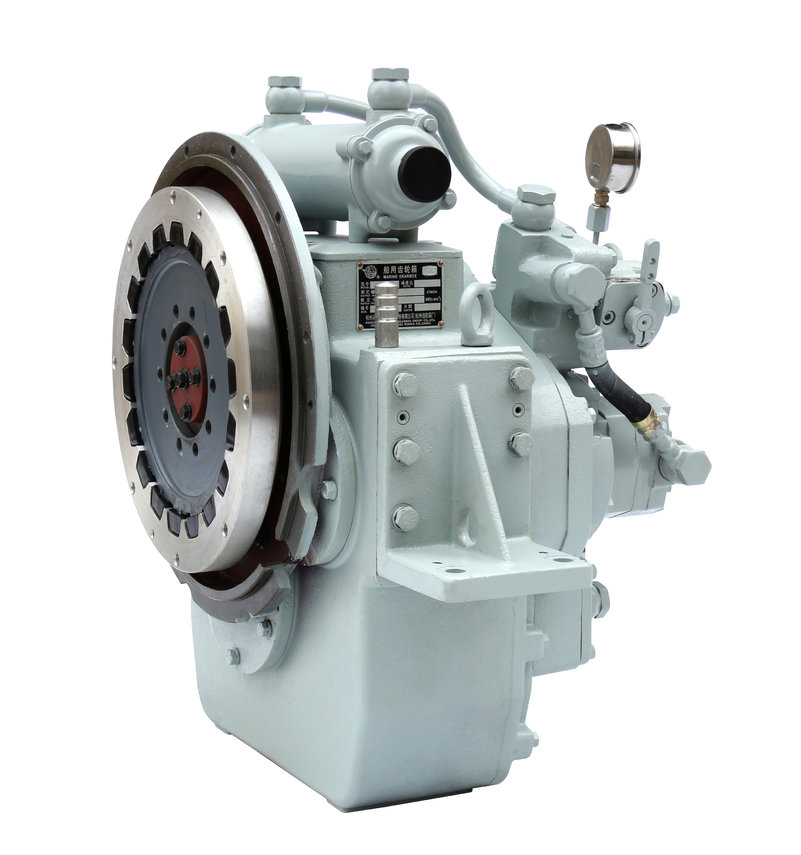

ADVANCE 120C - 1,94:1
Medium/heavy duty gearbox
| Reference number | A-120C-1,94 |
| Brand | Advance |
| Model | 120C |
| Ratio | 1,94:1 |
| Power | 244,8 HP @ 1800 RPM |
| Max. Power | 340 HP @ 2500 RPM |
| RPM Range | 1000-2500 |
| Rated propeller thrust | 25 KN |
| N/n | 0,136 HP/RPM |
Features & options
| Sae housing | Without/SAE-1/SAE-2/SAE-3 |
| Controls | Mechanical/ Electrical |
| Pto | Available |
| Note | If using flexible couping, rate will rise 8% |
| Coupling size | 14 /11,5 inch |
| Coupling type | Rubber block drive, with alu. ring/(High) flexible coupling |
Dimensions
| Vertical offset | 180 mm |
| LxWxH | 352x694x650 mm |
| Net. weight | 225 kg |
