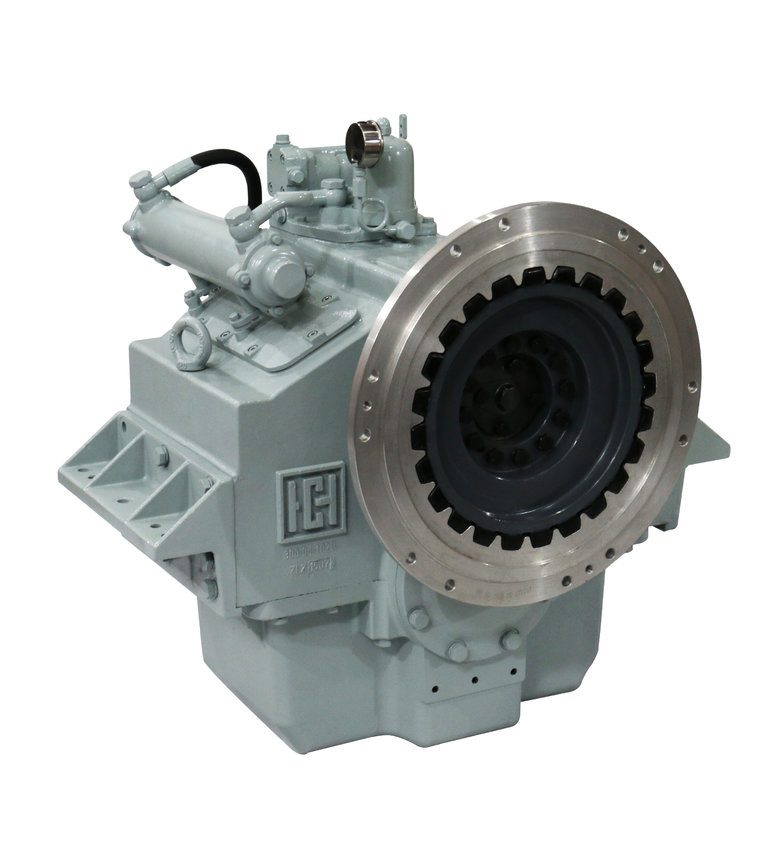

ADVANCE 135A - 5,81:1
Medium/heavy duty gearbox
| Reference number | A-135A-5,81 |
| Brand | Advance |
| Model | 135A |
| Ratio | 5,81:1 |
| Power | 169,2 HP @ 1800 RPM |
| Max. Power | 188 HP @ 2000 RPM |
| RPM Range | 1000-2000 |
| Rated propeller thrust | 29,4 KN |
| N/n | 0,094 HP/RPM |
Features & options
| Sae housing | Without/SAE-1 |
| Controls | Mechanical/ Electrical |
| Pto | Not available |
| Coupling size | 14 inch |
| Coupling type | Rubber block drive, with alu. ring |
Dimensions
| Vertical offset | 225 mm |
| LxWxH | 578x744x830 mm |
| Net. weight | 470 kg |
