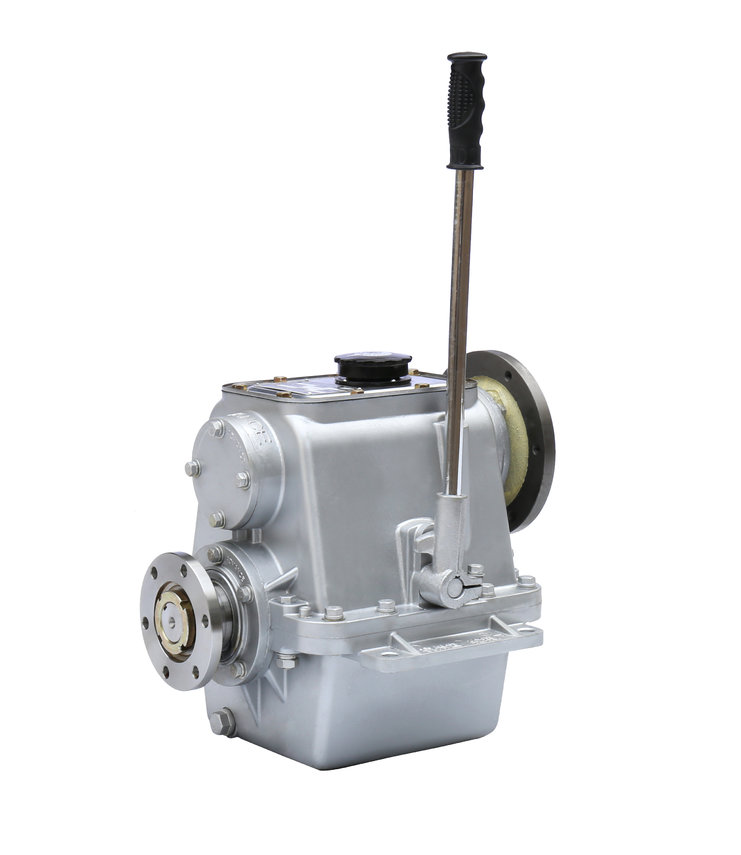

ADVANCE 16A - 3,35:1
Medium/heavy duty gearbox
| Reference number | A-16A-3,35 |
| Brand | Advance |
| Model | 16A |
| Ratio | 3,35:1 |
| Power | 28,8 HP @ 1800 RPM |
| Max. Power | 32 HP @ 2000 RPM |
| RPM Range | 1000-2000 |
| Rated propeller thrust | 3,5 KN |
| N/n | 0,016 HP/RPM |
Features & options
| Sae housing | Without |
| Controls | Mechanical-joint clutch |
| Pto | Not available |
| Coupling size | 11,5 inch |
| Coupling type | Rubber wheel coupling |
Dimensions
| Vertical offset | 135 mm |
| LxWxH | 422x325x563 mm |
| Net. weight | 84 kg |
