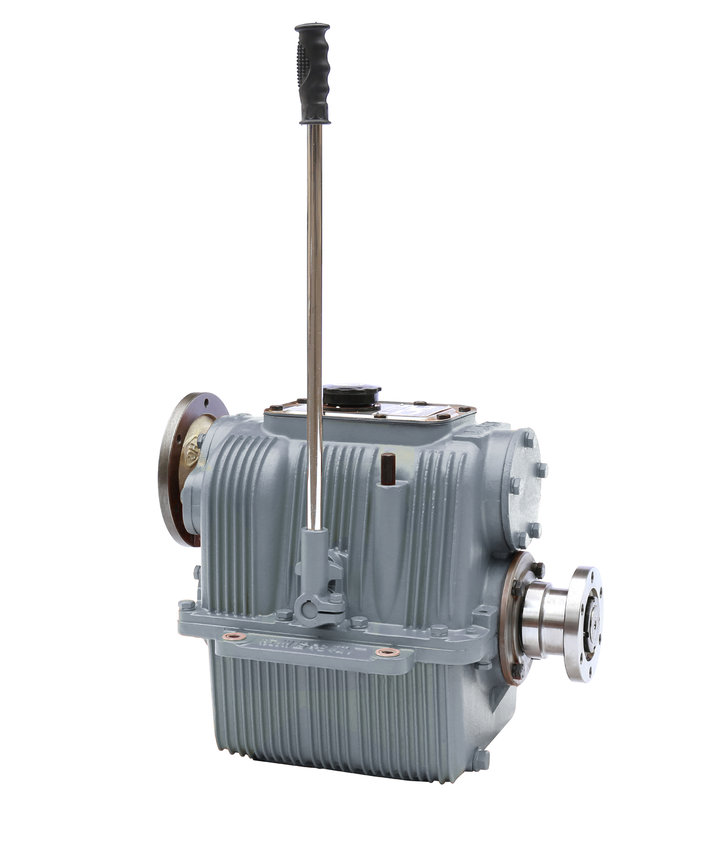

ADVANCE 26 - 5,05:1
Medium/heavy duty gearbox
| Reference number | A-26-5,05 |
| Brand | Advance |
| Model | 26 |
| Ratio | 5,05:1 |
| Power | 28,8 HP @ 1800 RPM |
| Max. Power | 40 HP @ 2500 RPM |
| RPM Range | 1500-2500 |
| Rated propeller thrust | 5,0 KN |
| N/n | 0,016 HP/RPM |
Features & options
| Sae housing | Without |
| Controls | Mechanical-joint clutch |
| Pto | Not available |
| Coupling size | 11,5 inch |
| Coupling type | Rubber wheel coupling |
Dimensions
| Vertical offset | 135 mm |
| LxWxH | 473,5x365x830 mm |
| Net. weight | 92 kg |
Available arrangements
| Ratio | 2,48:1 | 2,95:1 | 3,35:1 | 3,83:1 | 4,47:1 | 5,05:1 |
| Rate | 0,027 HP/RPM | 0,026 HP/RPM | 0,024 HP/RPM | 0,02 HP/RPM | 0,016 HP/RPM |
Get quote for ADVANCE 26 - 5,05:1
