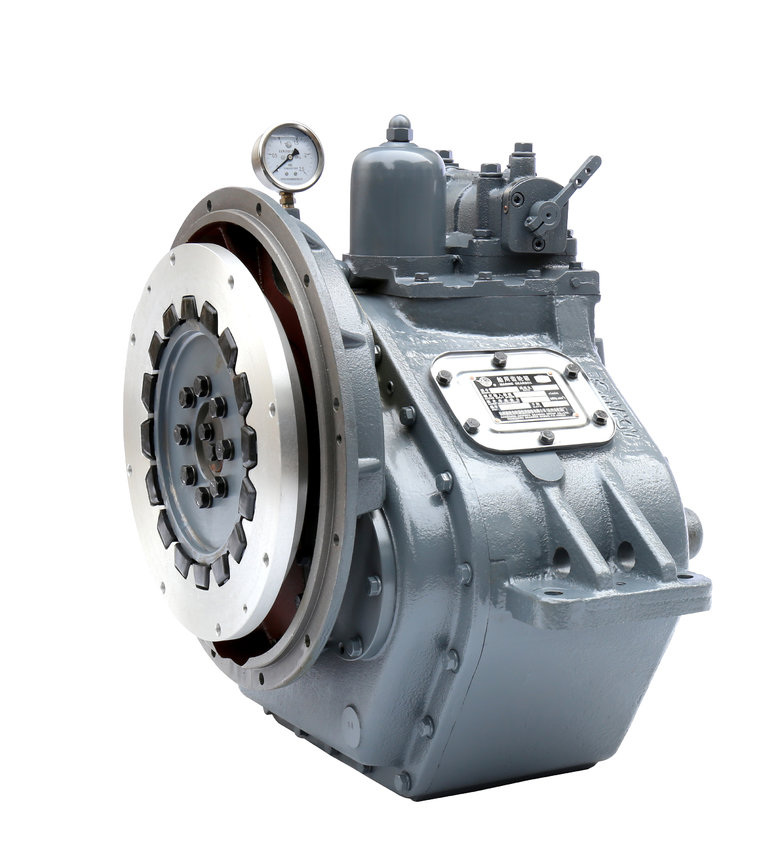

ADVANCE 40A - 3,44:1
Medium/heavy duty gearbox
| Reference number | A-40A-3,44 |
| Brand | Advance |
| Model | 40A |
| Ratio | 3,44:1 |
| Power | 61,2 HP @ 1800 RPM |
| Max. Power | 68 HP @ 2000 RPM |
| RPM Range | 750-2000 |
| Rated propeller thrust | 8,8 KN |
| N/n | 0,034 HP/RPM |
Features & options
| Sae housing | Without/SAE-2/SAE-3 |
| Controls | Mechanical |
| Pto | Not available |
| Coupling size | 11,5 inch |
| Coupling type | Rubber block drive, with alu. ring |
Dimensions
| Vertical offset | 170 mm |
| LxWxH | 490x670x620 mm |
| Net. weight | 225 kg |
