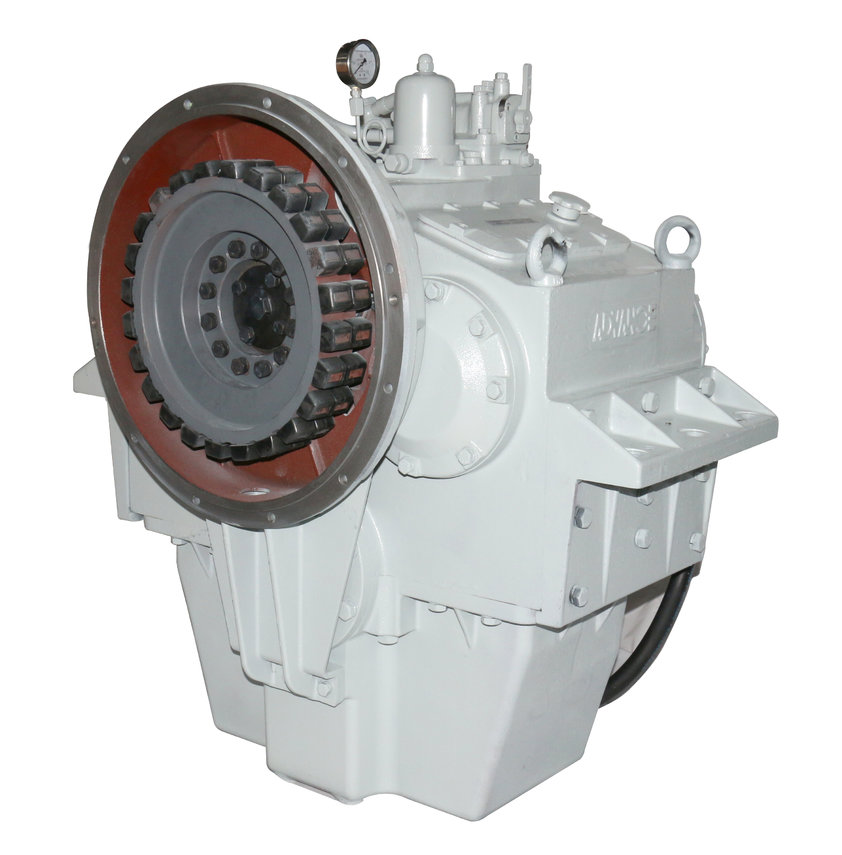

ADVANCE D300A - 7,63:1
Medium/heavy duty gearbox
| Reference number | A-D300A-7,63 |
| Brand | Advance |
| Model | D300A |
| Ratio | 7,63:1 |
| Power | 306 HP @ 1800 RPM |
| Max. Power | 391 HP @ 2300 RPM |
| RPM Range | 1000-2300 |
| Rated propeller thrust | 60 KN |
| N/n | 0,17 HP/RPM |
Features & options
| Sae housing | Without/SAE-0/SAE-1 |
| Controls | Mechanical/ Electrical |
| Pto | Available |
| Note | If using flexible couping, rate will rise 8% |
| Coupling size | 18 /16 /14 inch |
| Coupling type | Rubber block drive, with alu. ring/(High) flexible coupling |
Dimensions
| Vertical offset | 355 mm |
| LxWxH | 786x920x1040 mm |
| Net. weight | 940 kg |
