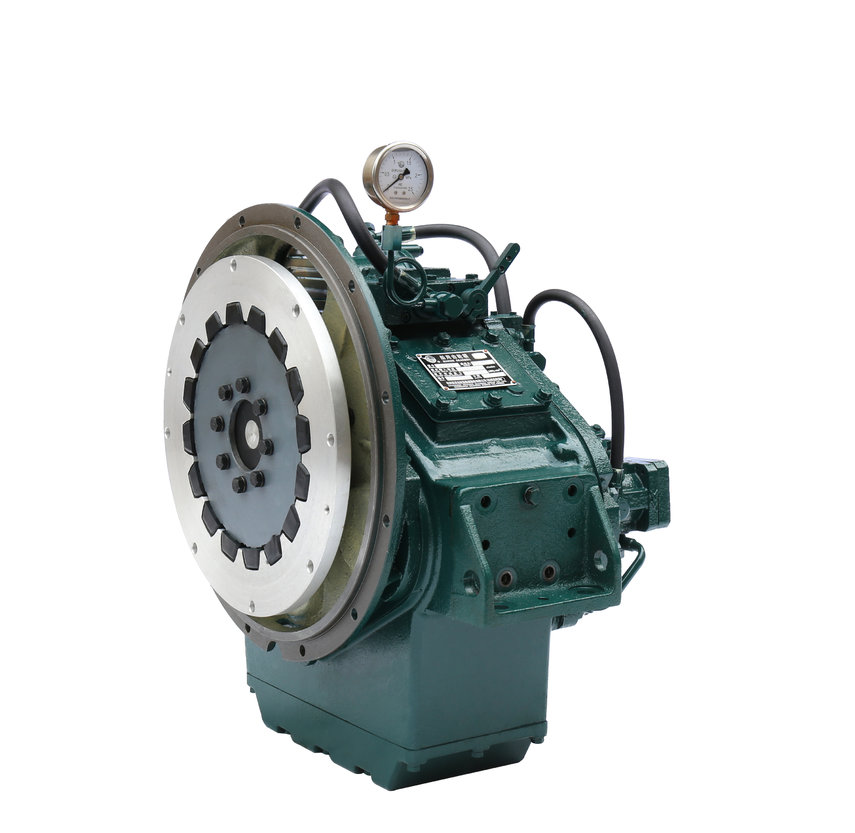

ADVANCE MA142A - 3,03:1
Medium/heavy duty gearbox
| Reference number | A-MA142A-3,03 |
| Brand | Advance |
| Model | MA142A |
| Ratio | 3,03:1 |
| Power | 73,8 HP @ 1800 RPM |
| Max. Power | 123 HP @ 3000 RPM |
| RPM Range | 1500-3000 |
| Rated propeller thrust | 8,5 KN |
| N/n | 0,041 HP/RPM |
Features & options
| Sae housing | Without/SAE-2/SAE-3 |
| Controls | Mechanical |
| Pto | Not available |
| Coupling size | 11,5 /10 /7,5 inch |
| Coupling type | Rubber block drive, with alu. ring |
Dimensions
| Vertical offset | 142 mm |
| LxWxH | 308x520x540 mm |
| Net. weight | 140 kg |
