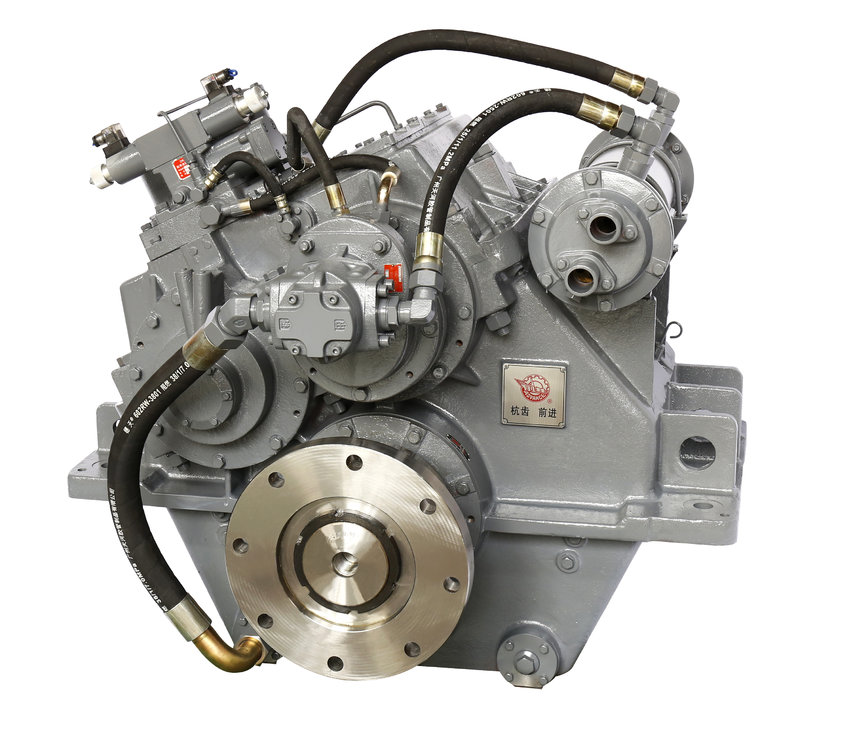

ADVANCE HC1000 - 2,5:1
Medium/heavy duty gearbox
Reference number | A-HC1000-2,5 |
Brand | Advance |
Model | HC1000 |
Ratio | 2,5:1 |
Power | 1800 HP @ 1800 RPM |
Max. Power | 1900 HP @ 1900 RPM |
RPM Range | 600-1900 |
Status | For sale |
Rated propeller thrust | 110 kn |
N/n | 1,0 hp/rpm |
Features & options
Sae housing | Without |
Controls | Mechanical/ electrical |
Pto | Not available |
Coupling size | 21 /18 inch |
Coupling type | Rubber block drive, with alu. ring |
Dimensions
Vertical offset | 335 mm |
LxWxH | 1082x1120x990 mm |
Net. weight | 2700 kg |
